Name: Modular Roof Rack For The Ineos Grenadier
Brand: TrailRax
SKU: TR-IN-GRN-MRR
Price: 2149.99 USD
Availability: InStock

Modular Roof Rack For The Ineos Grenadier

In stock, ready to ship
Backordered, shipping soon

Size

Full Rack

3/4 Rack

Wind Deflector?

Standard Deflector

Light Bar Cut out

$2,149.99

Shipping calculated at checkout.

Specs:

Overall height added to your Grenadier- 3.5" from the center of the roof
Pak Rax load rating: 70 lbs per side evenly distributed
Static load rating of the rack: 1000 lbs evenly distributed across the rack verified in CAD and real life testing
Dynamic load rating of the rack: 450 lbs evenly distributed across the rack verified in CAD and real life testing.
Safari windows can be opened and removed with full length rack!
3/4 length rack will go from rear to the start of the slope on the roof in the front.

Attributes of the TrailRax Modular Roof Rack for the Ineos Grenadier:

Higher weight capacity than the OEM roof rack and others
Easy bolt-on install, no drilling
Wind deflector to minimize annoying wind noise issues
Cutouts for high-performance Off-road lights
Majority Aluminum construction to avoid rust and corrosion
Stainless steel load bearing brackets for superior load bearing
Low profile to fit in garages and more
Retains the ability to remove and open Safari windows

TrailRax, Inc. Warranty Policy

TrailRax offers a lifetime limited warranty on all TrailRax products. Warranty is limited to product failure under normal operating conditions. Our lifetime limited warranty covers defects in materials used to manufacture our products, defects in workmanship, and broken components deemed to have failed under proper installation and normal wear and tear. Due to the nature in which our products are used, TrailRax cannot be responsible for any chips, scratches, rust or flaking to the finish. Additionally, TrailRax cannot be held financially responsible for any labor associated with installation or removal of our products. The placing of an order constitutes your understanding and acceptance of our Warranty policy.

This warranty does not cover defects caused by normal wear and tear, scratches, accidents, or products used for racing/competition. This warranty does not cover damage to the finish of powder-coated products. TrailRax, Inc. is not responsible for defects that are not in control of TrailRax, Inc. such as trail damage, overloading, incorrect assembly, or poor maintenance practices. TrailRax, Inc. is not responsible for defects or damage to products manufactured by other vendors and sold through TrailRax, Inc.

This warranty only applies to the original retail purchaser and the original installation of the product. This warranty is NON-TRANSFERRABLE. No retailer, reseller, dealer, or agent is authorized to make modifications, extensions, amendments, or additions to this warranty.

If you discover a defect, TrailRax will, at its option, repair or replace this product with a new or reconditioned product at no charge to you, provided you return it during the warranty period, with transportation charges prepaid, to TrailRax. (You can obtain additional information by contacting TrailRax at the address printed below). Prior to returning the product, you must obtain from TrailRax a Return Merchandise Authorization Number (RMA#) by contacting TrailRax at the address or phone number below. You are responsible for properly packaging the product to be returned. Please attach your name, address, telephone number, and a copy of the RMA form with ticket number, as well as a detailed description of the problem for which service is requested. If the repairs are covered by this warranty and if the product was properly shipped to TrailRax, TrailRax will pay the return shipping charges (domestic addresses only). This warranty applies only to TrailRax products manufactured by TrailRax that can be identified by TrailRax product trademarks, trade names, or logos affixed to them.

The original purchaser is responsible for shipping expenses to return the product to TrailRax.

385-777-2601

1654 W 1250 S, Unit 2

Woods Cross, Utah 84087

TRAILRAX HAS THE RIGHT TO REFUSE/VOID A WARRANTY IF THE PRODUCT FALLS UNDER ANY OF THE VOID ACTIONS AS STATED BELOW; AND WILL NOT BE ELIGIBLE FOR EXCHANGE, REFUND OR WARRANTY CONSIDERATION.

ACTIONS THAT WILL VOID YOUR WARRANTY

IF PRODUCT WAS NOT PURCHASED DIRECTLY FROM TRAILRAX OR AUTHORIZED TRAILRAX RETAILER OR DISTRIBUTOR.
PROOF OF PURCHASE CANNOT BE PROVIDED.
INSTALLATION OF THE PRODUCT ON THE WRONG VEHICLE OR MODEL.
IF DETERMINED THAT PRODUCT OR INSTALLATION WAS MODIFIED, CHANGED, ALTERED OR CUSTOMIZED IN ANY WAY.
REINSTALLATION OF PRODUCT ON ALTERNATE VEHICLE.
INSTALLATION OF THE PRODUCT WAS IMPROPER. FOR EXAMPLE, CROSS THREADING HARDWARE.
USER NEGLIGENCE AND CARELESSNESS IS OBSERVED

[{"id":45344434815143,"title":"Full Rack \/ Standard Deflector","option1":"Full Rack","option2":"Standard Deflector","option3":null,"sku":"TR-IN-GRN-MRR","requires_shipping":true,"taxable":true,"featured_image":{"id":37142487269543,"product_id":8138488709287,"position":2,"created_at":"2024-09-25T07:38:46-06:00","updated_at":"2024-09-25T07:38:47-06:00","alt":null,"width":3840,"height":2162,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full_Website_RNDR_Corner_v2.jpg?v=1727271527","variant_ids":[45344434815143]},"available":true,"name":"Modular Roof Rack For The Ineos Grenadier - Full Rack \/ Standard Deflector","public_title":"Full Rack \/ Standard Deflector","options":["Full Rack","Standard Deflector"],"price":214999,"weight":38555,"compare_at_price":214999,"inventory_management":"shopify","barcode":"850038765378","featured_media":{"alt":null,"id":29960106115239,"position":2,"preview_image":{"aspect_ratio":1.776,"height":2162,"width":3840,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full_Website_RNDR_Corner_v2.jpg?v=1727271527"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45344434880679,"title":"Full Rack \/ Light Bar Cut out","option1":"Full Rack","option2":"Light Bar Cut out","option3":null,"sku":"TR-IN-GRN-MRR-50","requires_shipping":true,"taxable":true,"featured_image":{"id":37142487367847,"product_id":8138488709287,"position":1,"created_at":"2024-09-25T07:38:46-06:00","updated_at":"2024-09-25T07:38:48-06:00","alt":null,"width":4472,"height":2518,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full-Cutout_Website_RNDR_Corner_v2.jpg?v=1727271528","variant_ids":[45344434880679]},"available":true,"name":"Modular Roof Rack For The Ineos Grenadier - Full Rack \/ Light Bar Cut out","public_title":"Full Rack \/ Light Bar Cut out","options":["Full Rack","Light Bar Cut out"],"price":214999,"weight":38555,"compare_at_price":214999,"inventory_management":"shopify","barcode":"850038765361","featured_media":{"alt":null,"id":29960106246311,"position":1,"preview_image":{"aspect_ratio":1.776,"height":2518,"width":4472,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full-Cutout_Website_RNDR_Corner_v2.jpg?v=1727271528"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45344434946215,"title":"3\/4 Rack \/ Standard Deflector","option1":"3\/4 Rack","option2":"Standard Deflector","option3":null,"sku":"TR-IN-GRN-MRR-H","requires_shipping":true,"taxable":true,"featured_image":{"id":37142487171239,"product_id":8138488709287,"position":3,"created_at":"2024-09-25T07:38:45-06:00","updated_at":"2024-09-25T07:38:46-06:00","alt":null,"width":1920,"height":1081,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_3-4_Website_RNDR_Corner_v2.jpg?v=1727271526","variant_ids":[45344434946215]},"available":true,"name":"Modular Roof Rack For The Ineos Grenadier - 3\/4 Rack \/ Standard Deflector","public_title":"3\/4 Rack \/ Standard Deflector","options":["3\/4 Rack","Standard Deflector"],"price":149999,"weight":29484,"compare_at_price":149999,"inventory_management":"shopify","barcode":"850038765149","featured_media":{"alt":null,"id":29960106016935,"position":3,"preview_image":{"aspect_ratio":1.776,"height":1081,"width":1920,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_3-4_Website_RNDR_Corner_v2.jpg?v=1727271526"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":45344434815143,"title":"Full Rack \/ Standard Deflector","option1":"Full Rack","option2":"Standard Deflector","option3":null,"sku":"TR-IN-GRN-MRR","requires_shipping":true,"taxable":true,"featured_image":{"id":37142487269543,"product_id":8138488709287,"position":2,"created_at":"2024-09-25T07:38:46-06:00","updated_at":"2024-09-25T07:38:47-06:00","alt":null,"width":3840,"height":2162,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full_Website_RNDR_Corner_v2.jpg?v=1727271527","variant_ids":[45344434815143]},"available":true,"name":"Modular Roof Rack For The Ineos Grenadier - Full Rack \/ Standard Deflector","public_title":"Full Rack \/ Standard Deflector","options":["Full Rack","Standard Deflector"],"price":214999,"weight":38555,"compare_at_price":214999,"inventory_management":"shopify","barcode":"850038765378","featured_media":{"alt":null,"id":29960106115239,"position":2,"preview_image":{"aspect_ratio":1.776,"height":2162,"width":3840,"src":"\/\/trailrax.com\/cdn\/shop\/files\/GRN_Full_Website_RNDR_Corner_v2.jpg?v=1727271527"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Key Features:

Overall height added to your Grenadier- 3.68" from the center of the roof. This is measured at the rear of the vehicle, center of the hump on the roof to the top of the rack.
Pak Rax load rating: 70 lbs per side evenly distributed.
Static load rating of the rack: 1000 lbs evenly distributed across the rack verified in CAD and real life testing.
Dynamic load rating of the rack: 450 lbs evenly distributed across the rack verified in CAD and real life testing.
Safari windows can be opened and removed with full length rack!
3/4 length rack will go from rear to the start of the slope on the roof in the front.

Attributes of the TrailRax Modular Roof Rack for the Ineos Grenadier:

Higher weight capacity than the OEM roof rack and others
Easy bolt-on install, no drilling
Wind deflector to minimize annoying wind noise issues
Cutouts for high-performance Off-road lights
Majority Aluminum construction to avoid rust and corrosion
Stainless steel load bearing brackets for superior load bearing
Low profile to fit in garages and more
Retains the ability to remove and open Safari windows

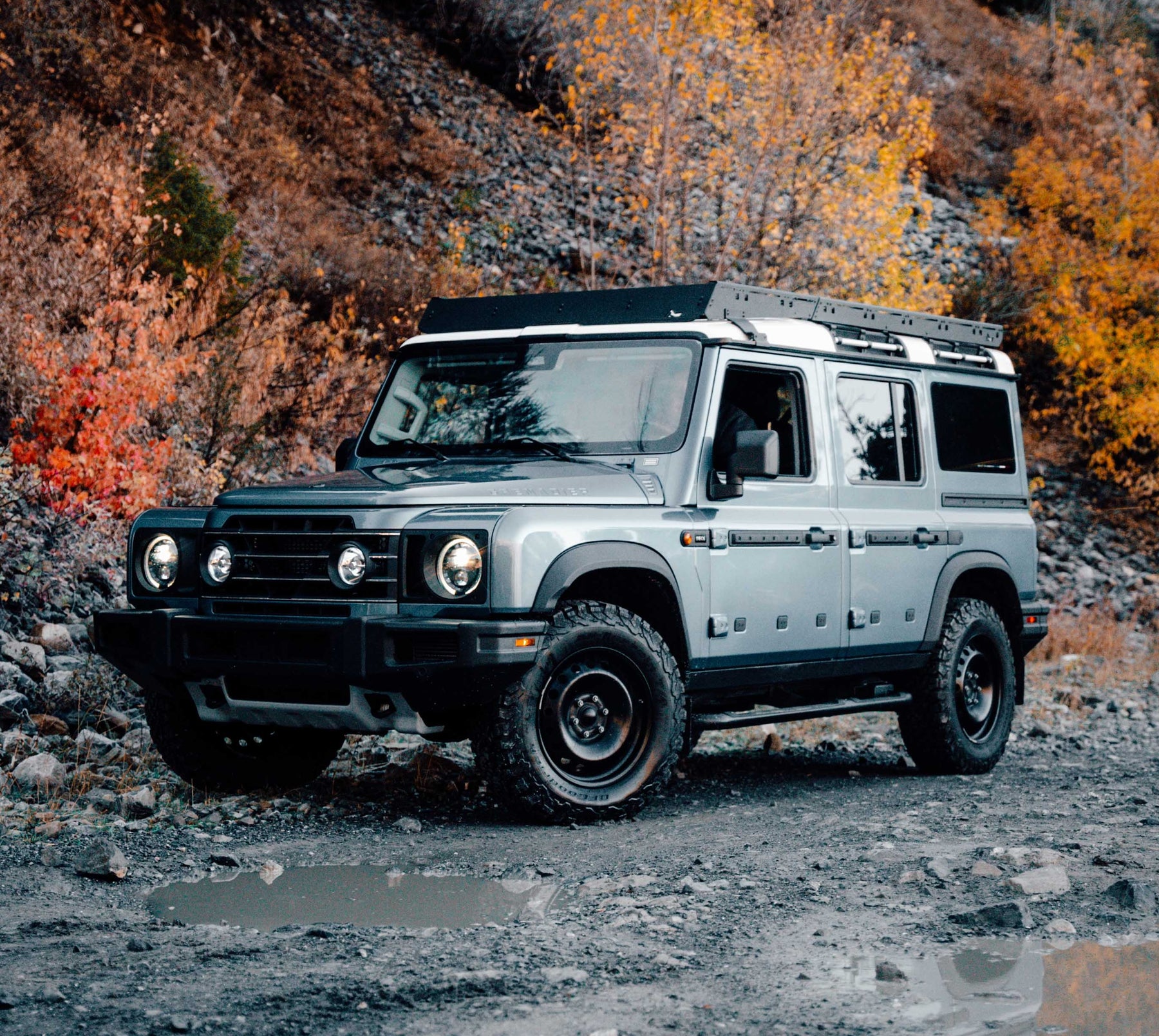

The TrailRax Ineos Grenadier Roof Rack (Pak Rax compatible, coming soon) is engineered for Grenadier owners seeking maximum durability, modularity, and gear-mounting flexibility. Built from 5052 3/16" aluminum, the one-piece panels deliver extreme rigidity and a 90-degree bent channel for 360° mounting of tools, gear, and accessories.

A wind deflector minimizes noise—one of the Grenadier’s most common complaints—and cutouts allow flush-mount off-road light bars below the aluminum TSLOT surface to keep the rack level for larger gear.

Anodized black aluminum extrusions (TSLOTS), precision-cut in Utah, offer high stress and deflection ratings. Crossmember cutouts allow hardware installation without removing the bars. The two-piece design lets the front section be removed or added later, providing modular storage options and maximum customization.

The mounting system uses factory-engineered Ineos bolt points: the rear 3/4 mounts via grab handle assembly bolts, while the front clamps to the rain gutter with stainless steel brackets and weather-resistant foam, creating a fully bolt-on, easy-install modular rack. Safari window access is maintained by adjusting a crossbar on the TSLOTS.

Compatible with TrailRax accessories, this modular roof rack is perfect for overlanders, off-road enthusiasts, and Grenadier adventurers, with the ability to upgrade or expand as your journey demands.

Brand's and Products recommend using with our TRMR Rack:

While you are not limited to these brands, these brands worked with us along the way in designing the rack. This gives us and them the ability to work with their products within the design to make sure everything fits properly and works together in harmony. If you are looking to accessorize your TRMR Rack, look no further than these brands if you want high-quality products that fit directly to your TRMR Rack with no headaches.

Hit this link!

Modular set up

Our rack offering for your Grenadier will give you the ability to add or remove the front quarter of the rack based on your needs for each adventure. You can always start with the rear 3/4 of the rack and purchase the front quarter later! This gives you the ability to customize your set up based on your daily use or weekend adventure.

Wind deflector options

Our wind deflector design will match the angle of your Grenadier to give it a factory look while offering better aerodynamics, less wind noise, and the ability to install a lightbar in the deflector. The deflector that options for a 50" cut out will fit most light bars but we highly recommend Heretic and Baja Designs as we design all of our racks around both of those brands.

Compatible with safari windows

Wanting to ensure your safari windows will function with our rack? No worries there! This was a key point in our design to ensure you have the ability to open and remove your safari windows with the full length rack on. The full rack will require you to adjust the mounting location of one crossbar to allow the removal of the safari window.

Back to Ineos
