SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar
SS50 Dual-Color LED Light Bar

SS50 Dual-Color LED Light Bar

DD8413


  • In stock, ready to ship
  • Backordered, shipping soon
Choose Your Power Level
Regular price$1,189.90
/
Shipping calculated at checkout.

TrailRax, Inc. Limited Lifetime Warranty Policy

TrailRax, Inc. offers a Limited Lifetime Warranty on all TrailRax products. By placing an order, you understand that it constitutes your understanding and acceptance of this policy.

Third-Party Product Warranties For products manufactured by our partners—including Rotopax, Roam, Maxtrax, GP Factor, Sunflare, Perfect Bungee, Rollercam, GME, and Alu-Cab—warranty claims must be directed to the manufacturer. While TrailRax is a proud authorized retailer, we do not process these claims internally. Please note that these items are covered by their respective manufacturer’s warranty. If you experience an issue, please contact the manufacturer directly for support. If you're not sure where to start, reach out to us and we’ll point you in the right direction.

Missing & Damaged Parts Reporting Policy:

The customer has thirty (30) days from the documented delivery date to notify TrailRax, Inc. of any missing and/or damaged components or hardware. All claims for missing parts must be accompanied by a copy of the Original Proof of Purchase and clear photographs showing all contents received in the original packaging.

1. Warranty Duration and Scope

  • This Limited Lifetime Warranty remains in effect for the duration the original retail purchaser owns the product and it is installed on the original vehicle. This warranty is NON-TRANSFERRABLE.

A. Covered Defects

This warranty is limited to product failure under normal operating conditions and covers:

  • Defects in materials used to manufacture our products.

  • Defects in workmanship.

  • Broken components deemed to have structurally failed under proper installation, necessary components for weight bearing, and normal use. Specifically, this warranty covers the structural failure of load-bearing components due to material defects or premature breakdown occurring during typical, non-abusive use.

B. Exclusions (What is Not Covered)

This warranty does not cover the following:

  • Finish/Cosmetic Damage: Any chips, scratches, fading, rust, or flaking to the finish or powder-coating.

  • External Damage: Defects or damage resulting from accidents, acts of nature, vehicle collisions, or trail damage.

  • Abuse & Misuse: Defects caused by competition/racing, overloading beyond the product's rated capacity, or poor maintenance practices.

  • Improper Use: Damage resulting from incorrect assembly, incorrect load bearing pieces, or installation, including, but not limited to, cross-threading hardware.

  • Third-Party Products: Defects or damage to products manufactured by other vendors and sold through TrailRax, Inc.

2. Remedy and Claims Process

If a covered defect is discovered, TrailRax will, at its sole discretion, repair or replace the product with a new or reconditioned product at no charge to you, provided the product is returned during the warranty period.

A. Warranty Claim Procedure

Prior to returning any product, you must obtain a Return Merchandise Authorization Number (RMA#) by contacting TrailRax at the address or phone number provided below.

The original purchaser is responsible for shipping expenses to return the product to TrailRax.

385-777-2601

1654 W 1250 S, Unit 2

Woods Cross, Utah 84087



B. Shipping and Return

If the repairs are covered by this warranty and the product was properly shipped to TrailRax, TrailRax will pay the return shipping charges back to the customer (domestic addresses only).

To expedite your warranty claim, please ensure your return package includes:

  • The assigned RMA # (clearly marked on the outside of the box).

  • A copy of the Original Proof of Purchase.

  • Your current name, address, and telephone number.

  • A detailed description of the defect/problem for which service is requested.

  • The product must be properly packaged to prevent damage during transit.

3. Warranty Void Actions

TRAILRAX HAS THE RIGHT TO REFUSE/VOID A WARRANTY if the product falls under any of the following conditions. Products with voided warranties will not be eligible for exchange, refund, or warranty consideration.

  • Non-Authorized Purchase: The product was not purchased directly from TrailRax or an authorized TrailRax retailer or distributor.

  • Lack of Documentation: Valid Proof of Purchase cannot be provided.

  • Unauthorized Modification: The product or its installation was modified, changed, altered, or customized in any way from its original design.

  • Improper Application: Installation of the product on the wrong vehicle or model, or reinstallation of the product on an alternate vehicle.

4. Limitation of Liability

Replacement of a defective product or the issuance of a credit/refund (as determined by TrailRax) is the purchaser’s exclusive remedy under this warranty.

TrailRax cannot be held financially responsible for any labor associated with the installation or removal of our products.

TrailRax, Inc. is not liable for any consequential, incidental, or special damages, including, but not limited to, any damage to the purchaser's vehicle, cargo, or any other person or property that results from the use or failure of a TrailRax product.



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

*Does not include wiring harness, add here

Features

  • Patented TIR Optics for maximum efficiency and output.
  • Dual-function main beam, without the need for extra switches.
  • Modern welcome sequence and selectable backlight color with SmartSelect technology.
  • Available in Sport and Pro power levels.
  • Durable aluminum housing with ASTM-standard powdercoat finish.
  • Built for the extreme with IP69K waterproof rating.
  • Limited Lifetime Warranty.
  • Made in USA with Global Materials.

Overview

See Further and Go Faster with all-new SS50 Dual-Color LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market — plus advanced control and unmatched configurability — the new Stage Series Lightbars are the most capable lightbars available today.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Thanks to copper circuit boards on the high-power models, thermal transfer materials, and optimized heatsinks, these lightbars effectively dissipate heat from the LED chips, allowing them to run at maximum power, producing serious light output.

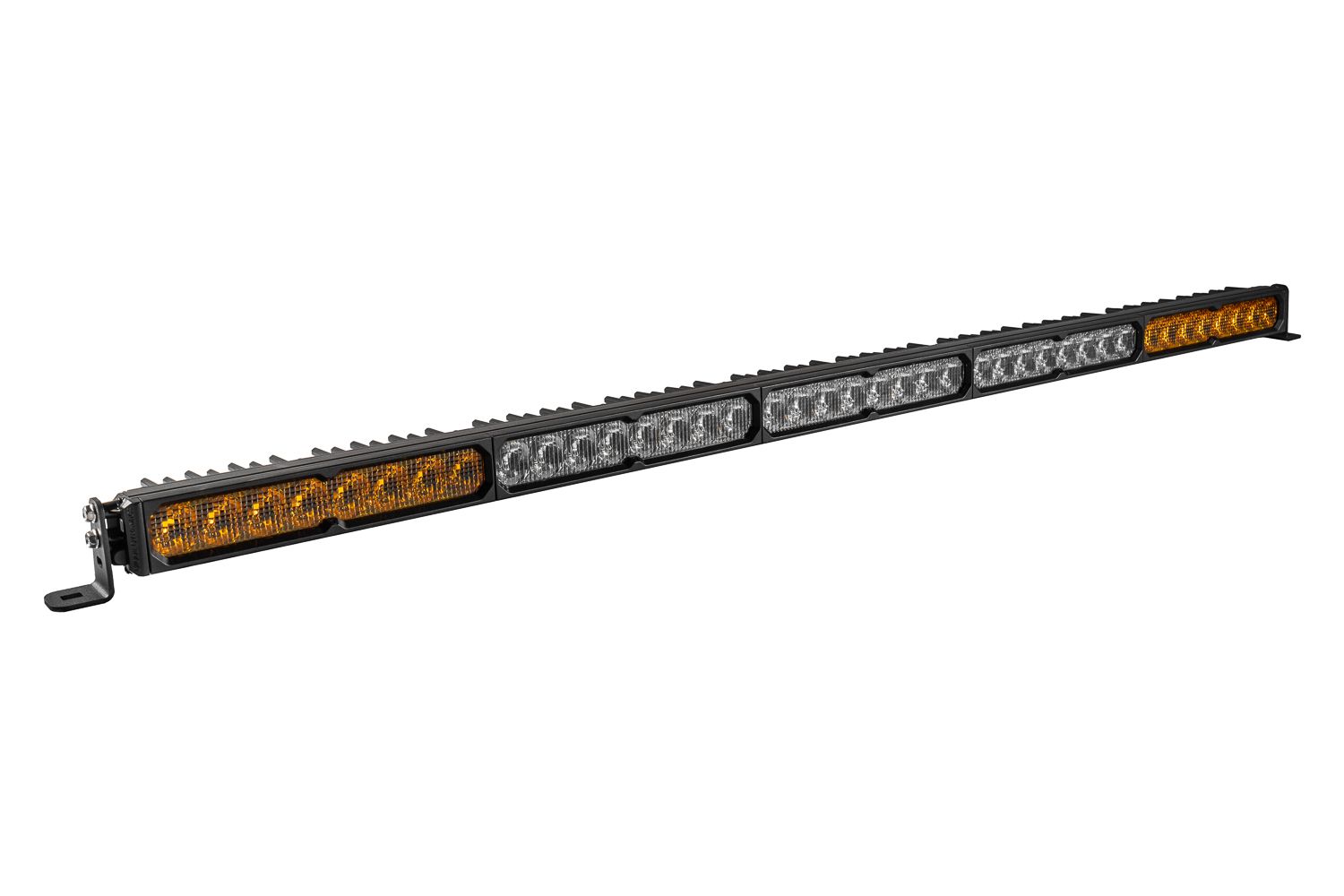

Built for Every Application. Stage Series Dual-Color LED Light Bars feature yellow Combo/Driving optics in the outer two segments, with white SAE Driving optics in the inner segment.

The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Our Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination.

SAE Driving is designed to supplement your high beams, but it's also great for general illumination, providing extra punch and distance ahead, without being a tight spot pattern. The SAE Driving pattern is a slightly broad-spot that balances reach and width with a spread of 20x12 degrees.

Dual-Function Main Beam. Thanks to SmartSelect technology, the SS50 Dual-Color Light Bar includes a dual-function main beam that allows you to run the inner segment only, outer segments only, or the full bar. Unlike other brands that require extra wiring or separate switches, this patented technology is programmed directly into the light bar. Simply cycle the main beam power a few times to toggle to the option you want.

This level of control is invaluable when dealing with varied terrain. When moving slowly, you can run just the outer yellow Combo/Driving segments for wide coverage without glare. Then, when moving fast, switch to the inner SAE Driving segment for greater visibility downrange. When conditions demand all-around visibility, light up the full bar!

Fully Illuminated Backlight. The SS50 Dual-Color LED Light Bar features an integrated backlight that fully illuminates the TIR optics, providing a custom look that sets your ride apart. The outer yellow segments feature a brilliant amber backlight, while the inner segment features a selectable multicolor backlight in your choice of eight colors. The amber backlight color has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs to produce true amber output. Selecting the backlight color of the inner segment is easy - simply alternate the power on and off. There’s no complicated programming with a controller!

Dynamic Startup Sequence. Anytime the backlight of the inner segment powers on, the selected backlight color, with the exception of amber, will sequence back and forth across the entire bar before fully illuminating, for a truly premium appearance.

Choose Your Power Level. The SS50 Dual-Color LED Light Bar is available in two different power levels. All options use high-intensity, automotive-grade LED emitters and TIR optics for unmatched focus and output. The Sport model offers the best bang for your buck, while the Pro model takes things a step further with a noticeable boost in power.

Swappable Optics and Colors. Just like the rest of our Stage Series lineup, the lenses on the SS50 Dual-Color LED Light Bar are swappable. All Stage Series LED light bars use 6000K Cool White LED emitters. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white! Click here to view our full lineup of replacement lenses.

Snap-On Covers. Protect your investment or take the customization even further with our full lineup of Snap-On Lens Covers! Available in clear, smoked, yellow, black, or amber, these covers install in seconds with no tools required. Just snap on and go!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


In the Box:
  • One (1) LED light bar
  • One (1) wire pigtail
  • Universal bracket set
Quantity: One (1)
Warranty: Lifetime warranty
