Built tough
Aero dynamic
Bolt on design

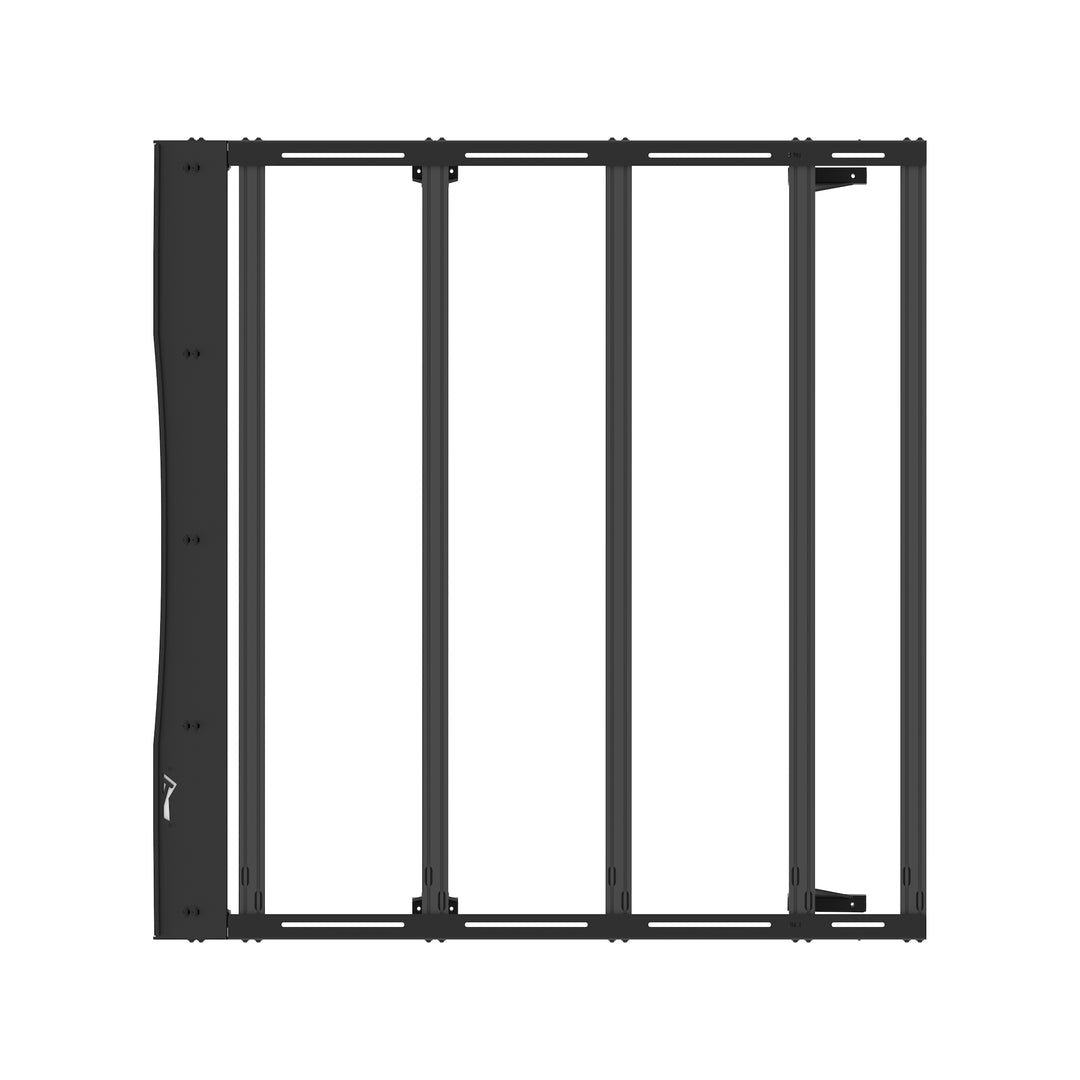

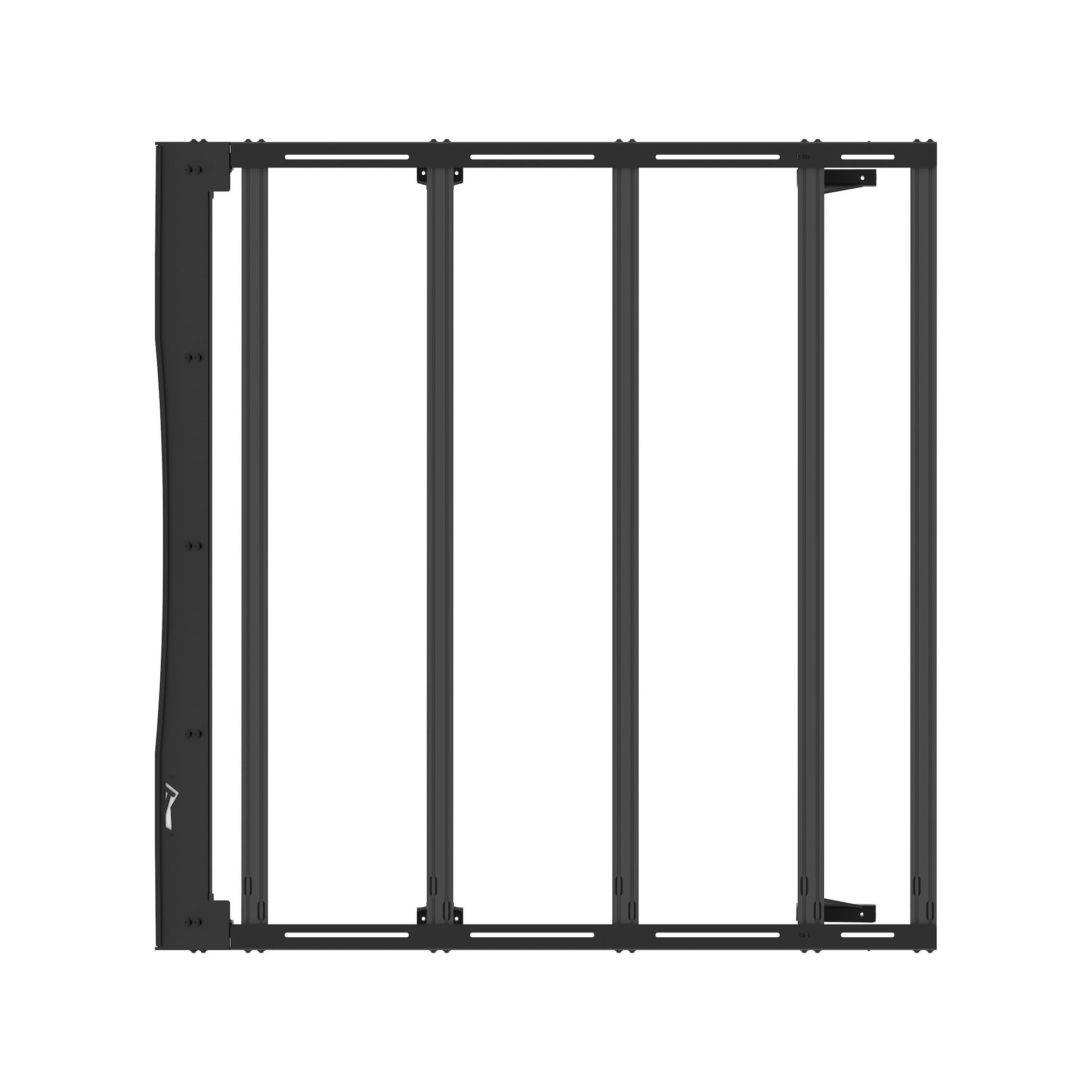

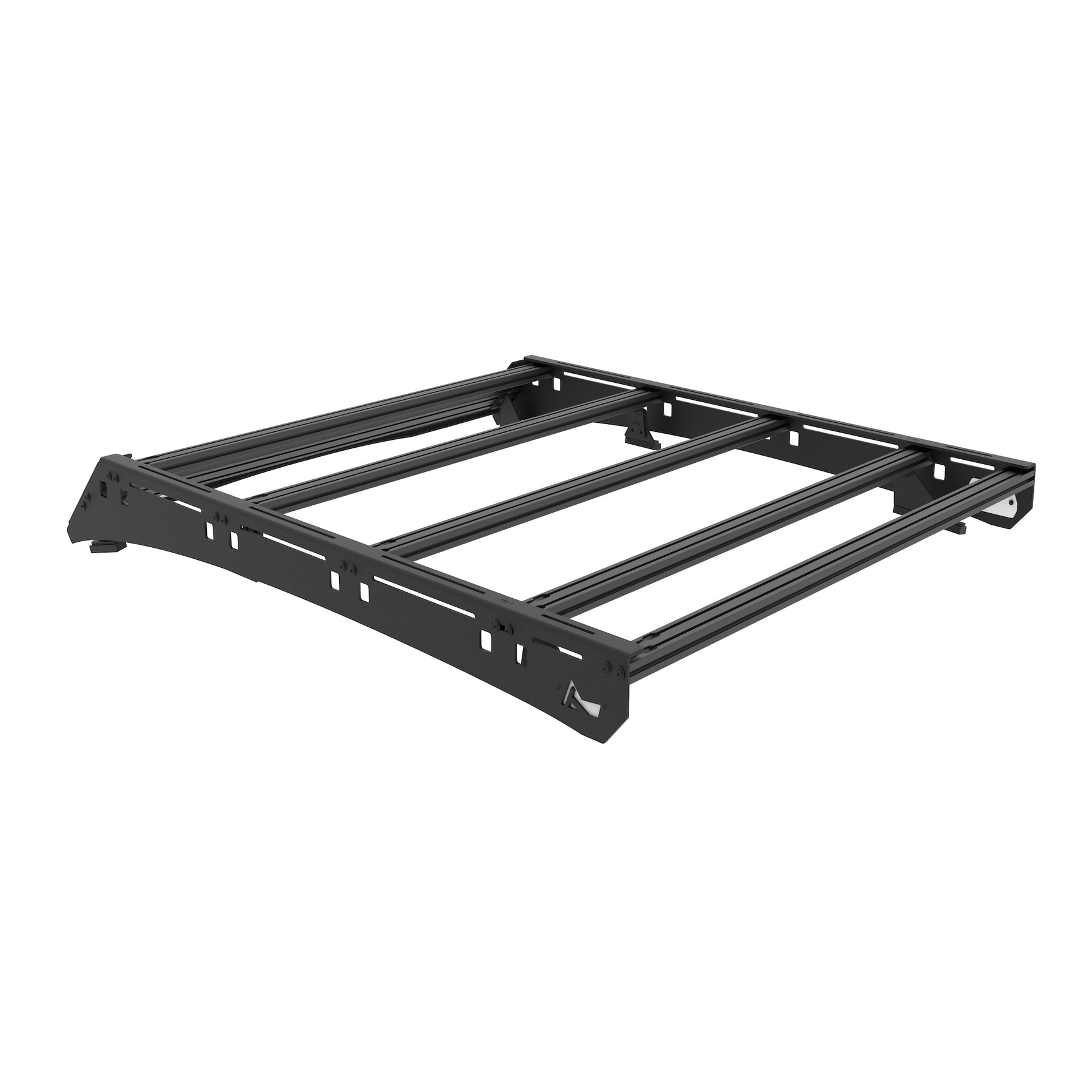

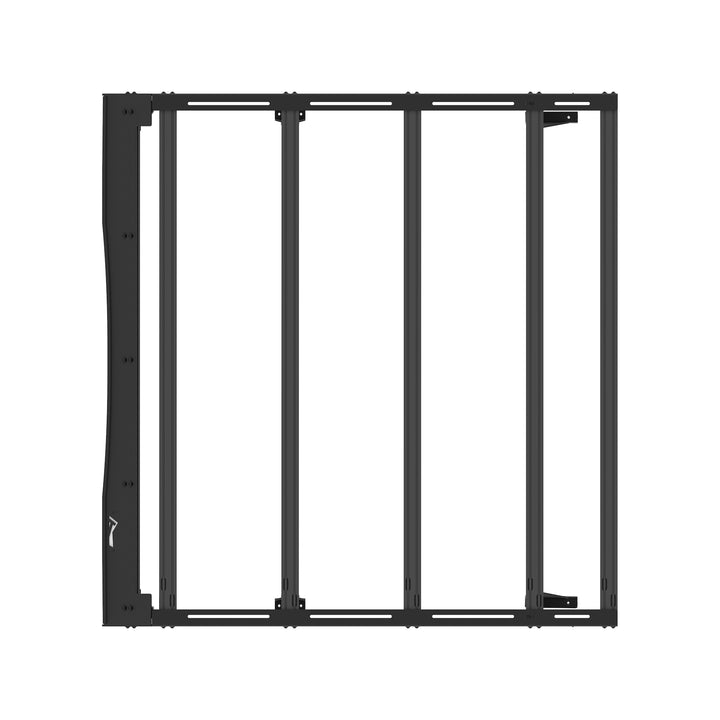

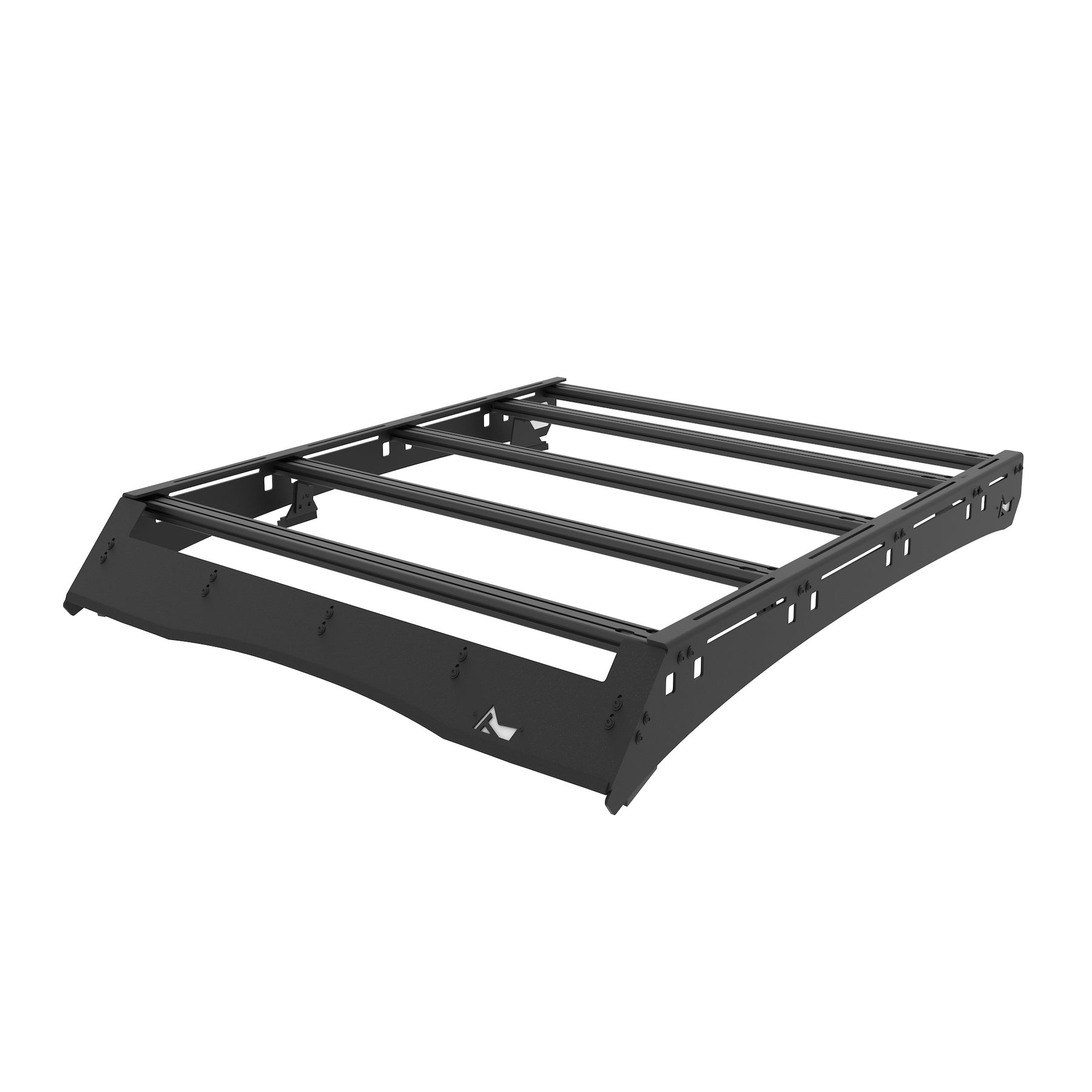

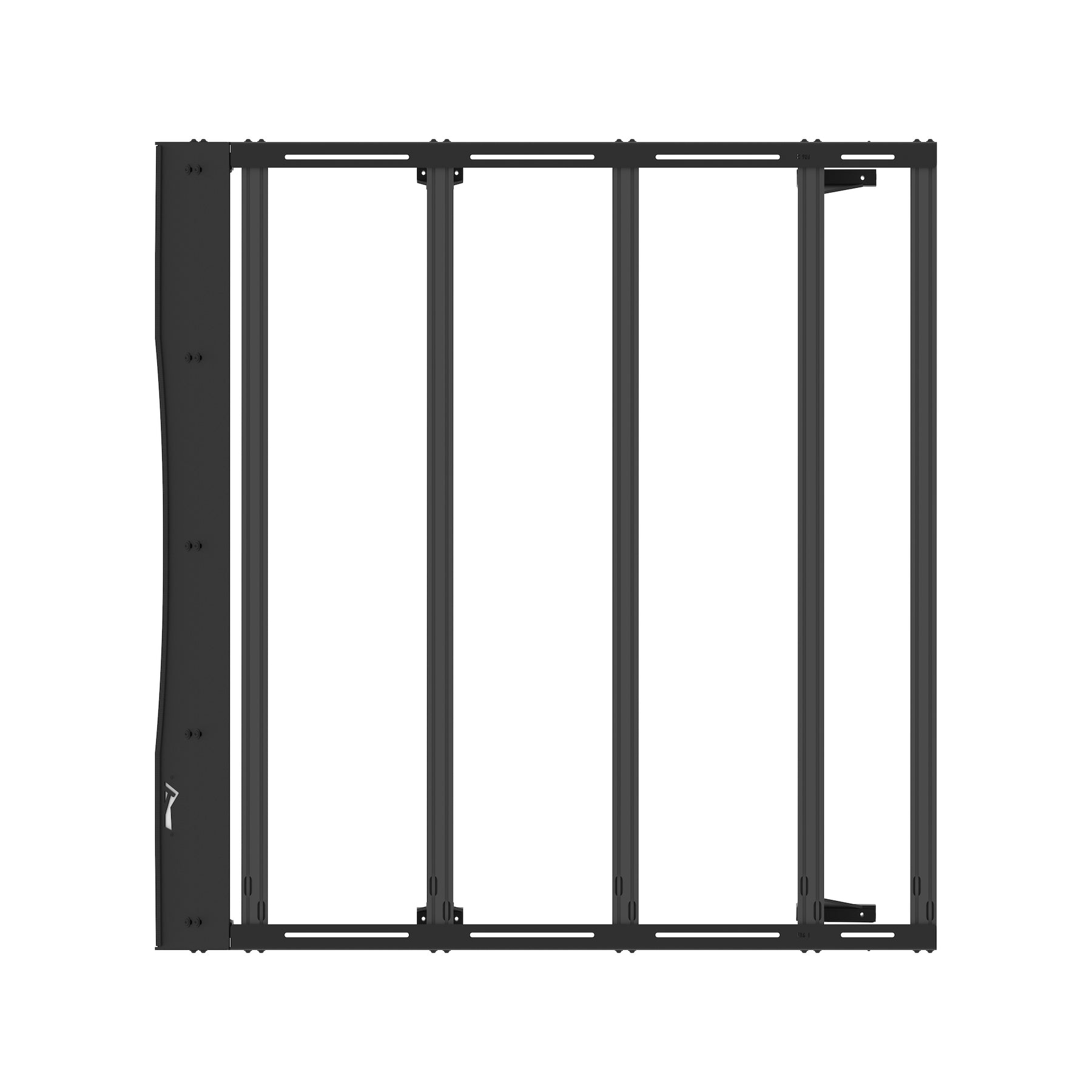

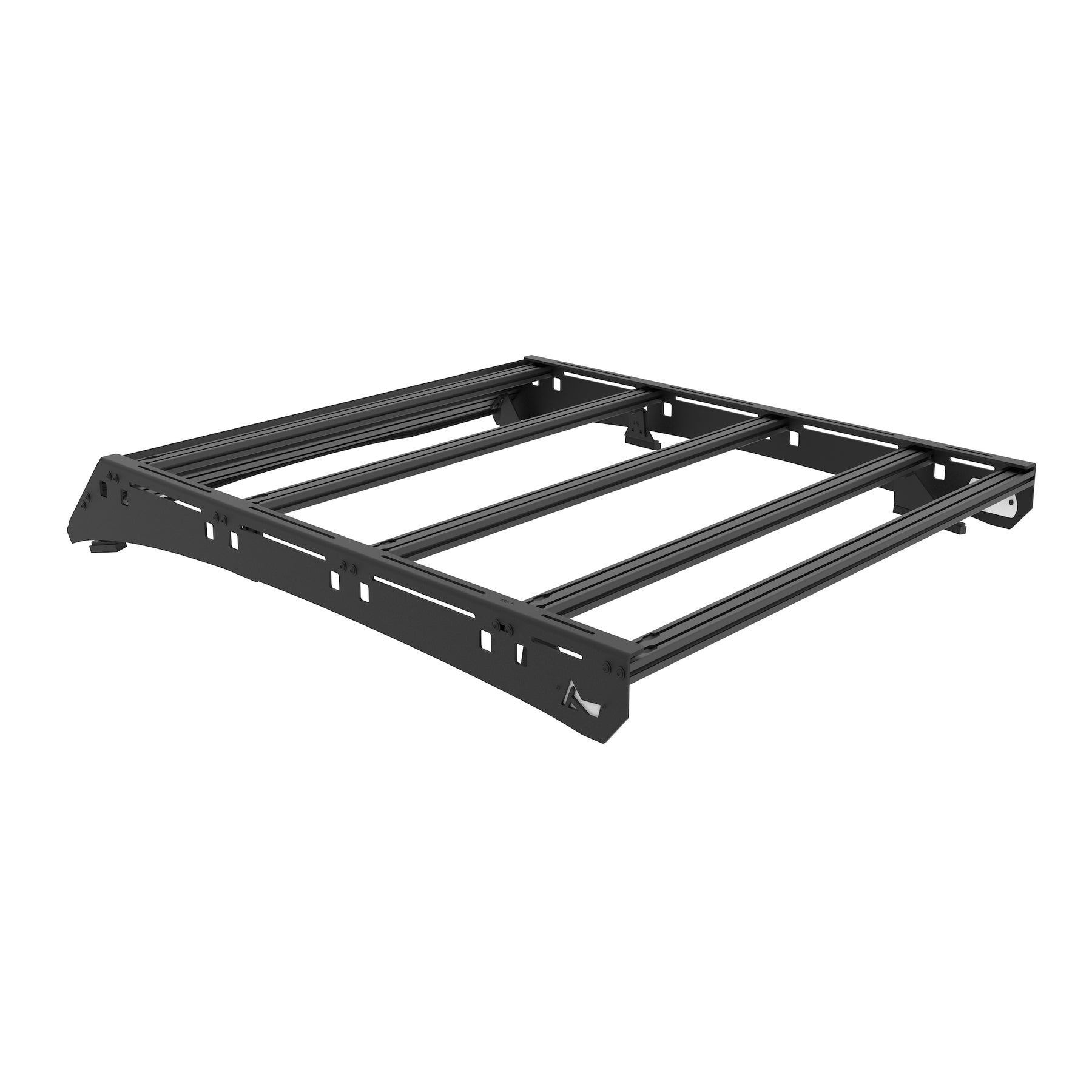

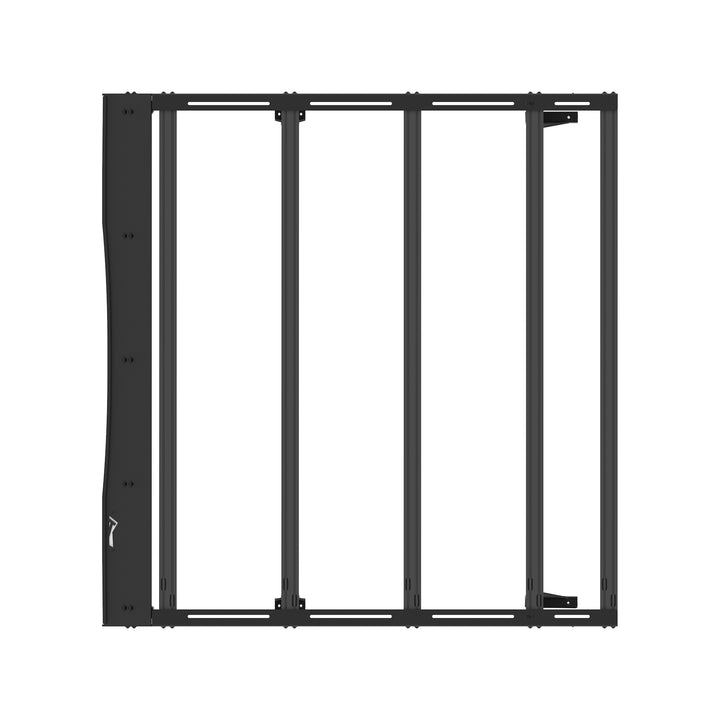

The most versatile roof rack available for your Ranger! This Aluminum roof rack offers an assortment of ways to mount gear and tools for your next adventure. We use 5052 3/16" aluminum for the main side panels that give extreme rigidness and durability for all the gear you plan to equip your Ranger with. We also have a large catalog of accessories available for this roof rack that will allow endless combinations and possibilities for the end-user.

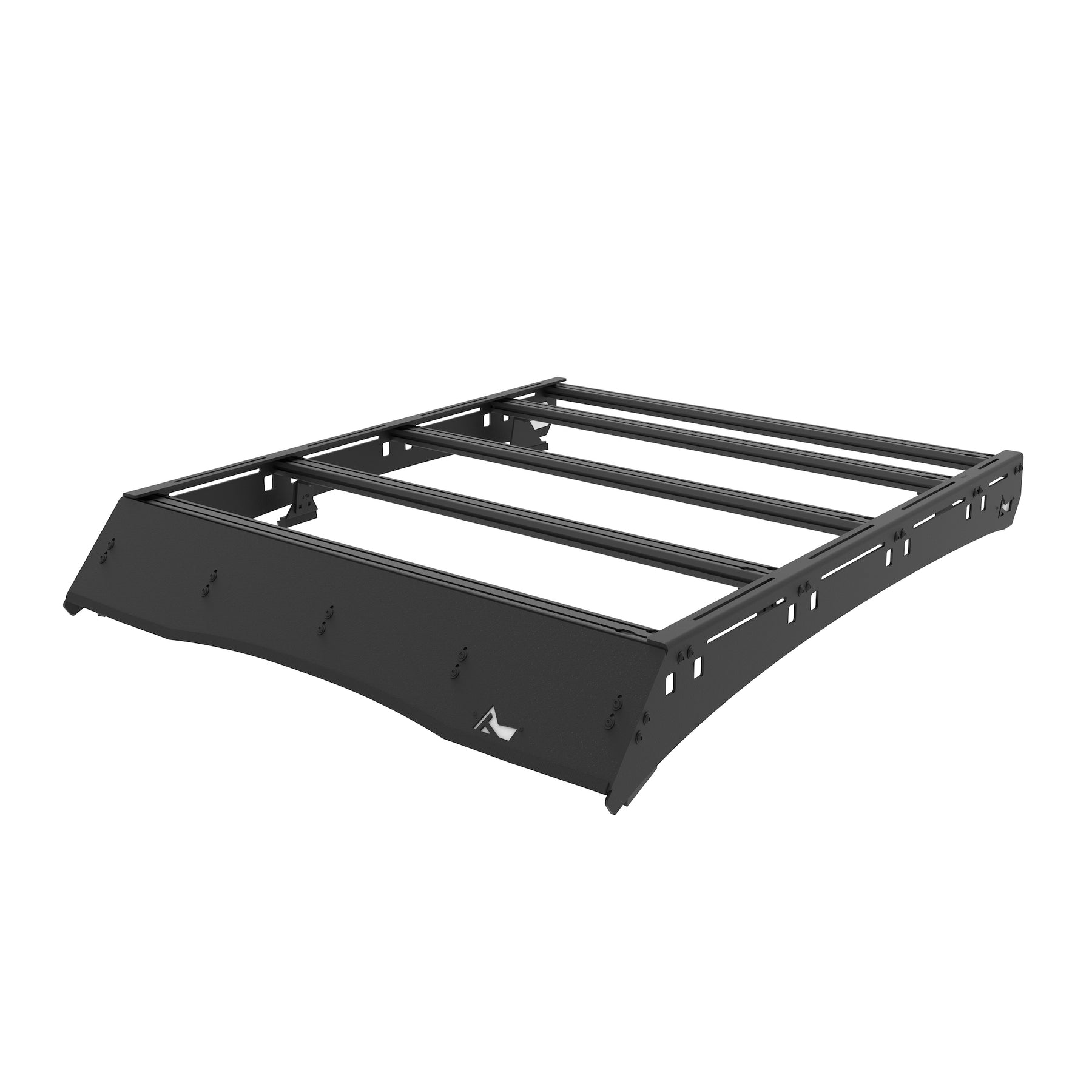

TrailRax includes a wind deflector to the roof rack to eliminate wind-noise all together. Our deflector angle is designed to match the windshield angle so you keep your aerodynamics as well as have a rack that looks like it should have come from factory. We also worked with off-road lighting brands such as, Heretic Studios and Baja Designs, to work on a cut-out to flush fit a light bar into the wind deflector. This combination of our roof rack and 40" light bars will allow the light to sit below the top face of the aluminum TSLOT so that the rack is completely level for those larger items on the rack.
Our Aluminum extrusions/TSLOTS that come with the rack are anodized black and cut to length with absolute precision down to 0.015 of an inch. The extrusions are made locally here in Utah and have a high-stress rating as well as deflection rating giving the user the best load capacity possible. Our TSLOT extrusions we use also have a cut out to drop most types of hardware in without unbolting the rack and extrusion!

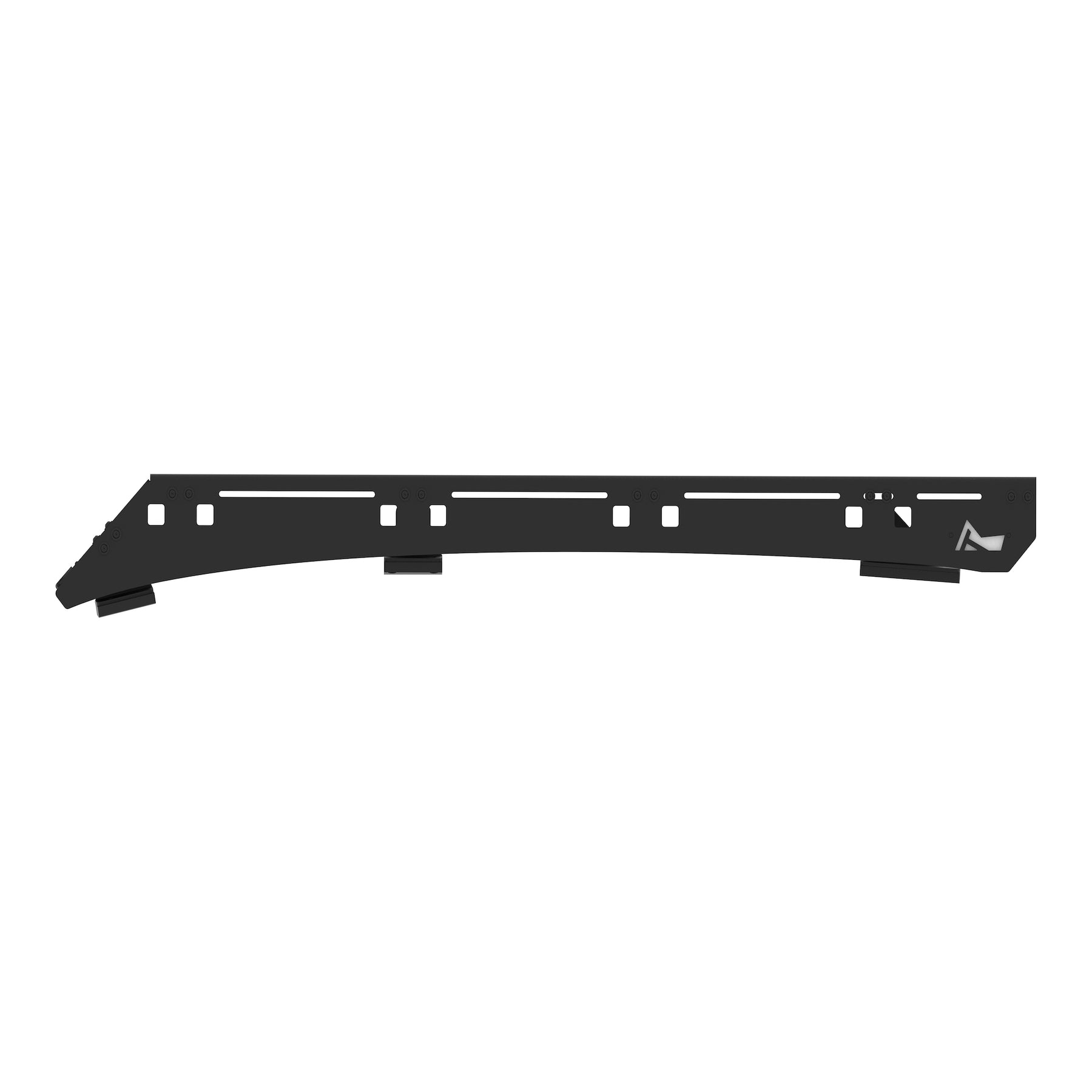

Our one-piece side panels for the roof rack offer extreme durability and capacity to the rack itself. It also offers a 90-degree bent channel that gives the end-user a full 360 degree area to mount even more accessories. These panels also come precut with slots to add more extrusions and tools to the side panels, offering more modularity and customization.

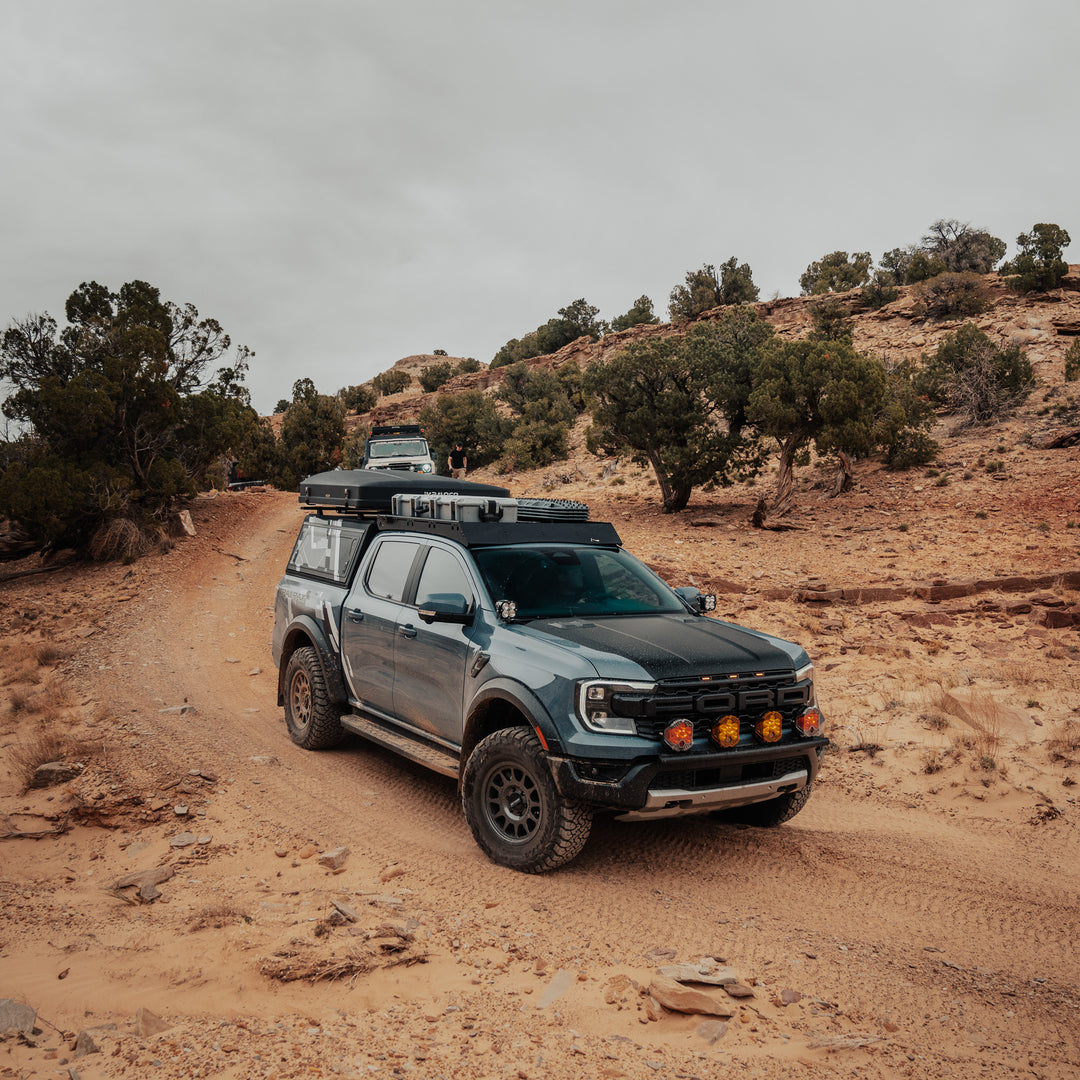

The mounting system uses CNC cut and bent Stainless Steel feet that distribute the load of the rack directly to the roof of the vehicle. It is mounted into reinforced parts of the cab that are perfect for load bearing roof racks. We designed this Modular Roof Rack to do everything that the Ranger Raptor was designed to do, dominate the trails and desert with superior off-road presence. We never settled in the design and wanted every Ranger rack to be capable of taking on all tasks.
The Ranger's headliner does not need to be dropped for this install, but you will be required to remove some plastic trim in the interior to gain access to the bolts and nuts to remove the black trim on the roof and install our roof rack feet.
Our TrailRax Modular Roof Rack line is a great option for the all-out overlanders or desert racers as well as the entry-level overlanders or off-roaders. This rack gives the end-user the ability to upgrade or add to their roof rack as they need.
Brand's and Products recommend using with our TRMR Rack:
While you are not limited to these brands, these brands worked with us along the way in designing the rack. This gives us and them the ability to work with their products within the design to make sure everything fits properly and works together in harmony. If you are looking to accessorize your TRMR Rack, look no further than these brands if you want high-quality products that fit directly to your TRMR Rack with no headaches.
Hit this link!
Specs:
- Fits Ford Ranger 2024+ headliner does not need to be dropped for install but plastics of the interior will need to be removed for the duration of the install
- Overall height added to your Ranger- 2.68" from the center of the roof, tallest part of the roof
- Static load rating of the rack: 650 lbs evenly distributed across the rack
- Dynamic load rating of the rack: 350 lbs evenly distributed across the rack
